1.2 Inch Round TFT Display 240x240 Resolution MCU Interface Driving IC NV3002B 400C/D brightness
| Tempat asal | CINA |
|---|---|
| Nama merek | HuaXin |
| Sertifikasi | ISO14001/ISO9001/IATF16949 |
| Nomor model | HX0120Y004 |
| Dokumen | HX0120Y004-spec.pdf |
| Kuantitas min Order | 1000 |
| Harga | $2.8 |
| Kemasan rincian | Kotak blister+busa+tas gelembung+di dalam karton+karton master |
| Waktu pengiriman | 6 minggu ~ 8 minggu |
| Syarat-syarat pembayaran | T/t |
| Menyediakan kemampuan | 100k per bulan |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Teknologi tampilan | Tampilan LCD TFT | Nama | Layar TFT Bulat |
|---|---|---|---|
| Ukuran | 1.2" | Resolusi | 240x240 |
| Drive IC | NV3002B | Lihat sudut | Sudut pandang bebas |
| Antarmuka | Mcu | Kecerahan | 400c/d |
Deskripsi Produk
1.2 Inch Round TFT Display 240x240 Resolution MCU Interface Driving IC NV3002B 400C/D brightness
A: Product Parameter
| Part No: | HX0120Y004 |
| display Mode | 1.2 inch round TFT display |
| outline size(mm) | 32.54(H) ×34.31(V)×1.57(T) |
| AA size(mm) | 30.24x30.24 |
| Display dots | 240x240 |
| view Angle | all |
| Brightness | 400c/d |
| interface | MCU |
| Driving IC | NV3002B |

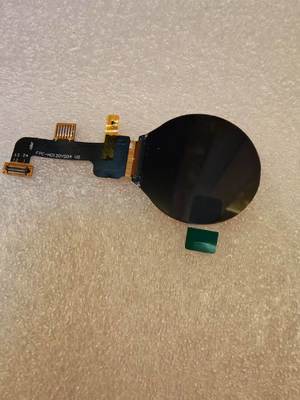

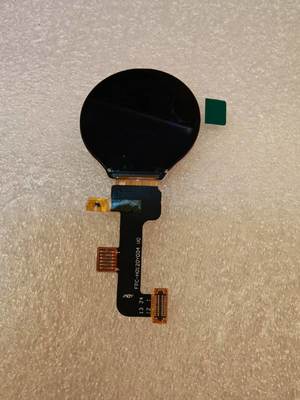

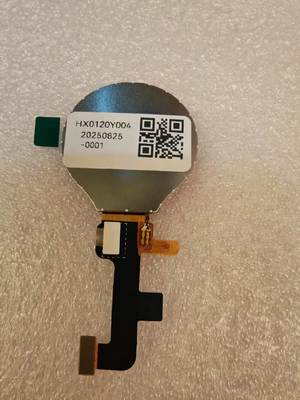

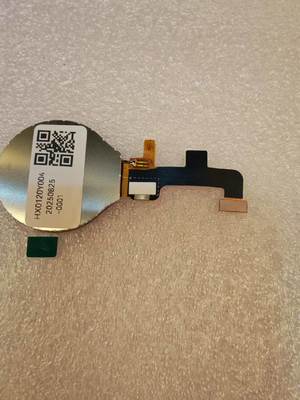

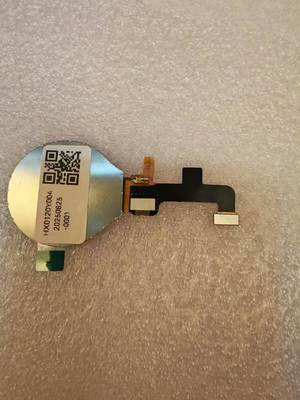

B:Product Picture
C: Drawing
D:TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production Capacity
| Annual Production Capacity |
2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark | ||
| LCD Producton Capacity |
4.5 | 9 | 9 | 9 | 9 | Unit:thousands of logarithms/Day |
||
| LCM Producton Capacity |
70 | 150 | 300 | 450 | 450 | Unit:Thousand piece/Day |
||
| Backlight Producton Capacity |
100 | 200 | 300 | 500 | 500 | Unit:Thousand piece/Day |
||
| OLED Producton Capacity |
10 | 20 | 30 | 40 | 50 | Unit:Thousand piece/Day |
||
G: Product Application
1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance
H: TFT Display Characteristics
1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.
2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.
3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.
4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.
5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.
6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.
7.Wide Applications:
I: Are there any drawbacks or limitations to using TFT displays?
1. Limited Viewing Angles:
2. Limited Contrast Ratio
3. Backlighting and Power Consumption
4. Response Time and Motion Blur
5. Limited Flexibility
6. Limited Color Gamut
