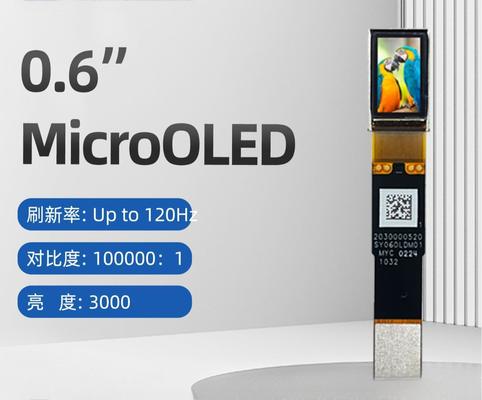

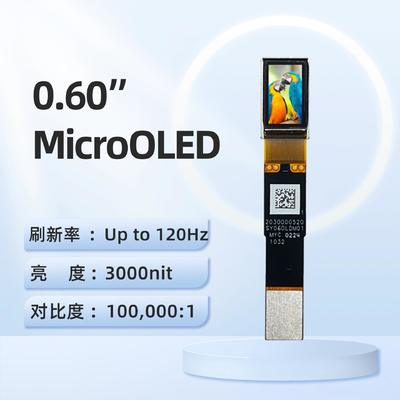

0.60-inch Micro OLED Display | 3000 Brightness, 120Hz High Refresh Rate, Dual Interfaces (I2C/MIPI) Suitable for Outdoor Detection / VR Devices, HD Self-illumination, Quick Integration
| Tempat asal | CINA |
|---|---|
| Nama merek | HuaXin |
| Sertifikasi | ISO14001/ ISO9001/IATF16949 |
| Nomor model | ESHXSY060WDG01 |
| Kuantitas min Order | 1000 |
| Harga | $190-$260 |
| Kemasan rincian | Kotak blister+busa+tas gelembung+di dalam karton+karton master |
| Waktu pengiriman | 6 minggu ~ 8 minggu |
| Syarat-syarat pembayaran | T/t |
| Menyediakan kemampuan | 50K per bulan |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Teknologi tampilan | Modul Tampilan AMOLED | Nama | Layar OLED mikro |
|---|---|---|---|
| Ukuran | 0,6 inci | Resolusi | 1920×1080 |
| Antarmuka | MIPI |
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
【0.60-inch Micro OLED】Display Screen, 3000 High Brightness, 120Hz High Refresh Rate, Dual Interfaces (I2C/MIPI), Suitable for Outdoor Equipment / High-Speed Interaction Scenarios, Self-Luminous and High-Definition
Product Parameters

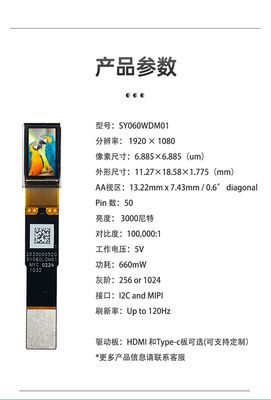

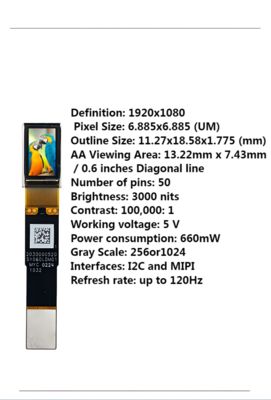

| Display Technology | AR display / Si-OLED |
| Size | 0.6 Inch |
| Resolution | 1920×1080 |
| Interface | 12C AND MIPI |
| view angle | All |
| Brightness | 3000cd/m² |

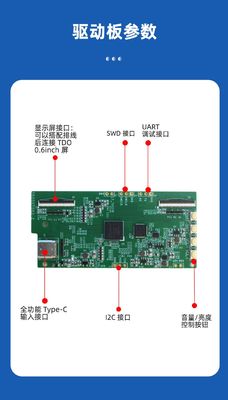

| Testing Board | HDMI and Type C optional |
| Part No. | ESHXSY060WDG01 |
| AA Size | 13.22mm x 7.43mm |

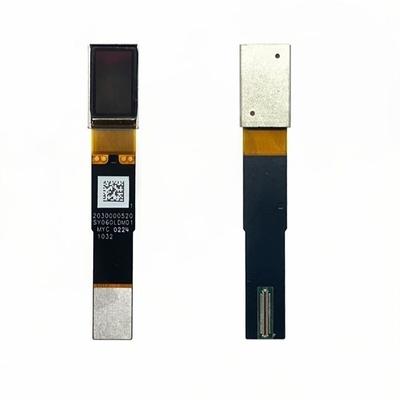

Product Images
OLED Technology Overview
Advantages
- Lighter and thinner than LCD displays
- High contrast ratio and color saturation
- Lower power consumption
Disadvantages
- Higher cost compared to LCD and TFT
- Shorter lifespan than LCD and TFT
AMOLED Display Characteristics
- Self-Emissive Pixels
- Superior Contrast Ratio
- Excellent Color Accuracy and Vibrancy
- Wide Viewing Angles
- Enhanced Power Efficiency
- Thinness and Flexibility
- Fast Response Time
Power Efficiency Comparison
AMOLED vs Other Display Technologies
- Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
- Content Dependency: AMOLED is more efficient for dark content as pixels can be turned off
- Brightness Control: AMOLED can dynamically adjust pixel brightness for better efficiency
- Display Size: AMOLED is more efficient for smaller displays as consumption scales with pixels
Product Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Radios & communication devices
- Collimators & navigational equipment
Company Information
Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
Registered Capital: 20 million
Current Staff: 500+
High technology enterprise specializing in research, development, and production of LCD, LCM, TFT, backlight, and OLED solutions.
Huaxin Advantages
- Cost-effective inland factory location
- Advanced equipment ensuring stable quality
- Automated production processes for efficiency
- Experienced engineering team with 20+ years in LCD field
- Custom product design capabilities
Certifications
ISO14001 / ISO9001 / IATF16949
SGS certified LCD modules
Production Capacity
| Annual Production Capacity | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
