2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications

Tempat asal CINA
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model HX0279-01
Kuantitas min Order 1000
Harga Negotiated
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/t
Menyediakan kemampuan 100k per bulan

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Teknologi tampilan Tampilan LCD Nama TFT LCD
Ukuran 2,79" Jenis tampilan IPS
Antarmuka SPI Lihat sudut semua
Resolusi 142x428 Kecerahan 400c/d
Menyoroti

2.79 Inch Bar Type TFT Display

,

142x428 Resolution TFT LCD

,

Industrial Applications IPS Display

Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface

High-performance industrial-grade TFT display featuring bar-type form factor, SPI interface, and excellent viewing characteristics.

Product Specifications
Parameter Value
Part No. HX0279-01
Display Size 2.79 inch bar type TFT display

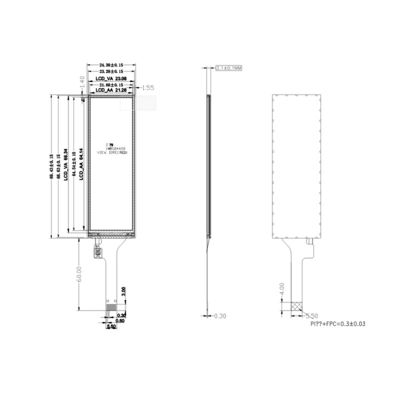

Outline Size (mm) 24.38*69.43*2.1
AA Size (mm) 21.28x64.14
Resolution 142x428
Interface SPI
Driver IC NV3007
Brightness 400c/d
View Angle ALL

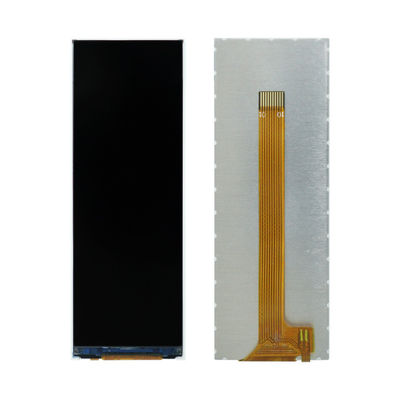

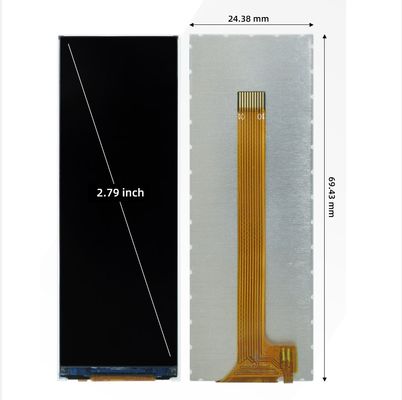

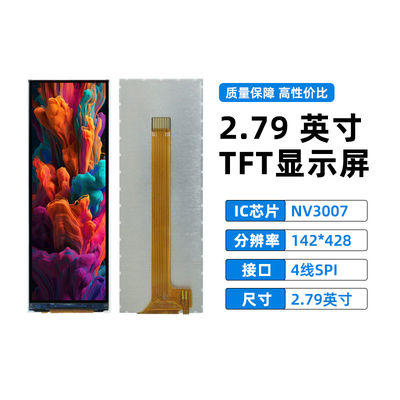

Product Images
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 0 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 1 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 2 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 3
TFT Technology Overview
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 4 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 5
Key Features
  • Superior Image Quality: High resolution, sharpness, and color accuracy
  • Fast Response: Quick pixel switching for smooth performance
  • Wide Viewing Angles: Clear visibility from multiple positions
  • Energy Efficient: Optimized power consumption
  • LED Backlit: Bright, uniform illumination
Applications
  • Car navigation systems & printers
  • Video communication & digital signage
  • Automotive interfaces & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
Technical Considerations
Potential Limitations
  • Optimal viewing within specific angles
  • Contrast ratio limitations in bright environments
  • Backlight power requirements
  • Potential motion blur in fast-moving content
  • Fixed form factor (non-flexible)
Manufacturer Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009

High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED solutions with 500+ employees and 20+ years of industry experience.

Company Advantages
  • Cost-effective inland manufacturing base
  • Advanced automated production equipment
  • 20+ years experienced engineering team
  • Custom design capabilities
  • Certifications: ISO14001, ISO9001/IATF16949, SGS
Product Portfolio
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
