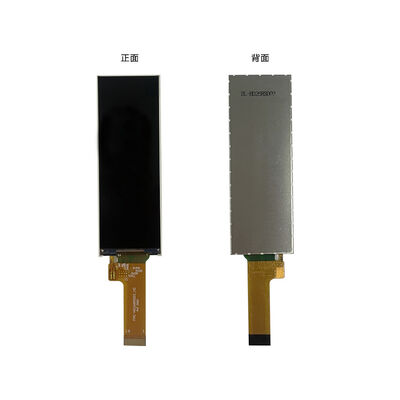

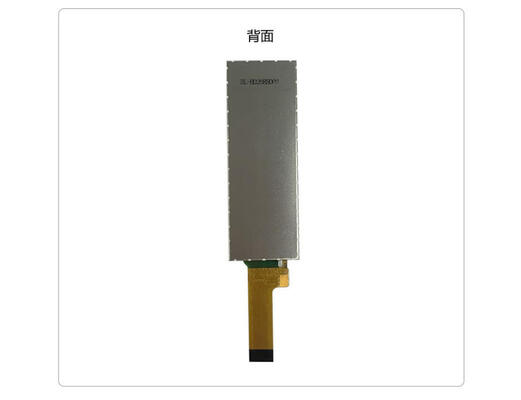

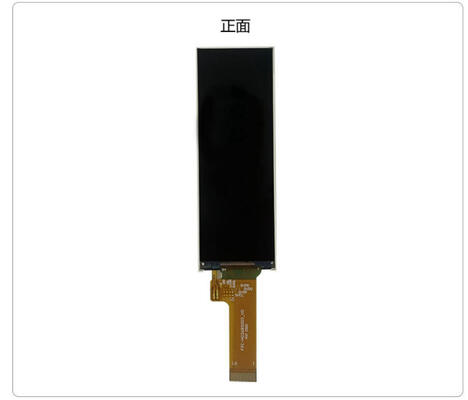

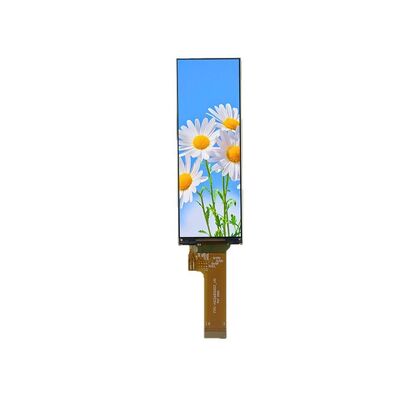

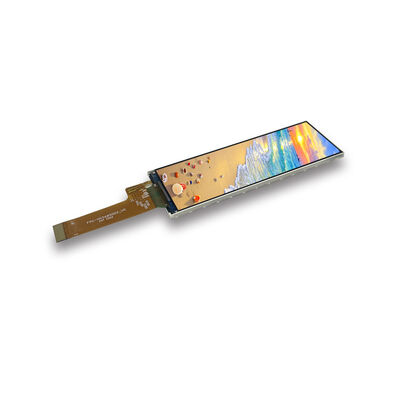

2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
| Tempat asal | Tiongkok |
|---|---|
| Nama merek | HuaXin |
| Sertifikasi | ISO14001/ISO9001/IATF16949 |
| Nomor model | HX0268S003T003 |
| Dokumen | HX0268S003T003-SPEC.pdf |
| Kuantitas min Order | 1000 |
| Harga | dapat dinegosiasikan |
| Kemasan rincian | Kotak blister+busa+tas gelembung+di dalam karton+karton master |
| Waktu pengiriman | 6 minggu ~ 8 minggu |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 100k per bulan |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Teknologi tampilan | Tipe Bar LCD | Nama | Jenis bar TFT |
|---|---|---|---|
| Ukuran | 2,68" | Resolusi | 142RGB x 428 |
| Kecerahan | 450 | Lihat sudut | Sudut pandang bebas |
| Antarmuka | QSPI | Mengemudi IC | NV3007 |
| Panel sentuh | CTP |
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface

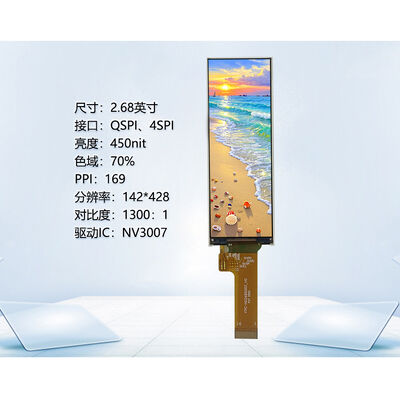

Product Specifications
| Part No. | HX0268S003T003 |
| Display Size | 2.68 inch tft display |
| Outline Size (mm) | 24.38(H) ×69.43(V)×2.09(T) |
| AA Size (mm) | 21.28(H)×64.14(V) |
| Resolution | 142RGB x 428 |
| Interface | QSPI |
| Brightness | 450 |
| View Angle | all |
| Driving IC | NV3007 |
| Touch screen | CTP |
Technical Drawing
TFT Technology Overview
TFT Substrate and CF Substrate Input Flow
TFT Structure
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
- Founded: 2009
- Location: Hubei, Enshi
- Registered capital: 20 million
- Current staff: 500+
- R&D team: 10% of workforce
- QC team: 15% of workforce
Company Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Highly automated production processes
- 20+ years experience in LCD field
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousands/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousands/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousands/Day |
Applications
- Car navigation systems & printers
- Video communication & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Advantages
- Image Quality: High resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching capability
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: Lower power consumption than alternative technologies
- Size Flexibility: Available in sizes from small handheld to large panels
- Backlighting: Typically uses LED backlight systems
- Versatility: Wide range of applications across industries
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Moderate contrast ratio
- Backlighting increases power consumption
- Potential motion blur in fast-moving images
- Limited flexibility in physical form
- Restricted color gamut compared to some alternatives
