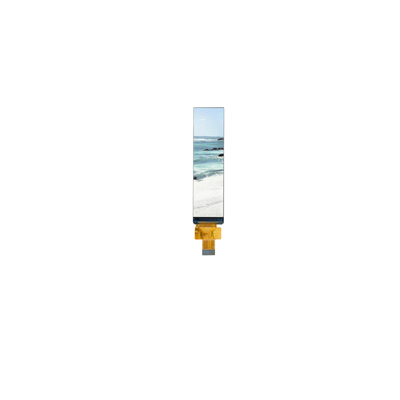

3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances

  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
Tempat asal Cina
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model ESHXT035BWV8696ANT
Kuantitas min Order 1000
Harga dapat dinegosiasikan
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 100k per bulan
Detail produk
Teknologi Tampilan Tipe Bar LCD Nama Jenis bar TFT
Ukuran 6,9" Resolusi 280 (RGB) x 1424
Kecerahan 300 CD/m2 Sudut Pandang Sudut pandang bebas
Antarmuka MIPI Mengemudi IC AXS15231
Lampu latar 8 LED Ukuran 3,71 inci
Resolusi 240(RGB) x 960
Tinggalkan pesan
Deskripsi Produk
3.71 Inch Bar Type Color LCD Display
240(RGB) x 960 Dots with MIPI Interface for Home Appliances Use

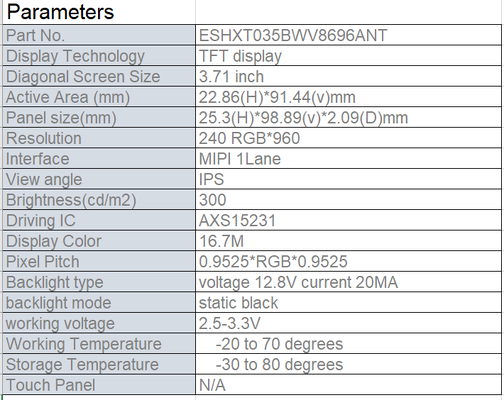

Product Specifications
3.71 inch bar type LCD display specifications

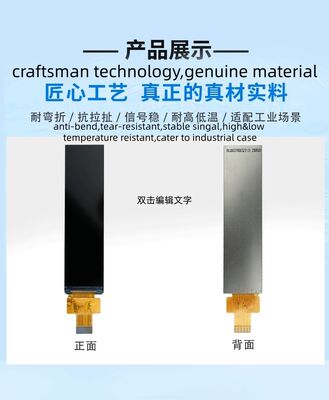

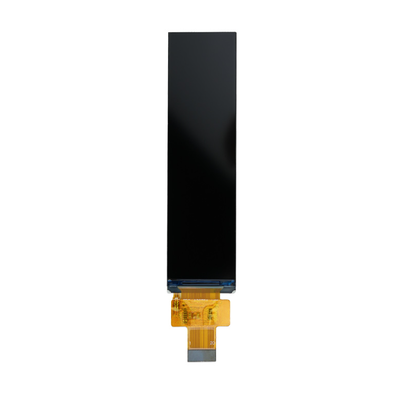

Product Images
3.71 inch bar type LCD display product view 3.71 inch bar type LCD display side view 3.71 inch bar type LCD display close-up 3.71 inch bar type LCD display detailed view

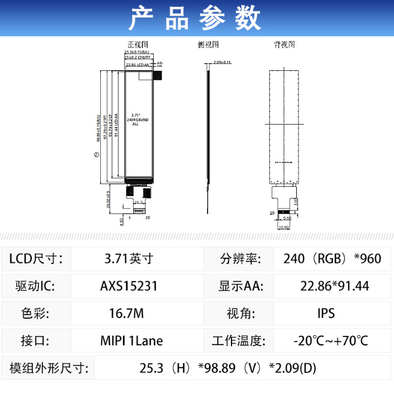

Technical Drawing
3.71 inch bar type LCD display technical drawing
TFT Technology Overview
TFT substrate and CF substrate input flow diagram TFT structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
  • Founded: 2009
  • Location: Hubei, Enshi
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Highly automated production processes
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in sizes from small handheld to large panels
  • Backlighting: Typically uses LED backlight systems
  • Versatility: Wide range of applications across industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving images
  • Limited flexibility in physical form
  • Restricted color gamut compared to some alternatives
