0.85 Inch IPS TFT LCD Screen with 128(RGB)x128 Resolution and 450nits Brightness for Smart Home Appliances

  • 0.85 Inch IPS TFT LCD Screen with 128(RGB)x128 Resolution and 450nits Brightness for Smart Home Appliances
  • 0.85 Inch IPS TFT LCD Screen with 128(RGB)x128 Resolution and 450nits Brightness for Smart Home Appliances
  • 0.85 Inch IPS TFT LCD Screen with 128(RGB)x128 Resolution and 450nits Brightness for Smart Home Appliances
  • 0.85 Inch IPS TFT LCD Screen with 128(RGB)x128 Resolution and 450nits Brightness for Smart Home Appliances
  • 0.85 Inch IPS TFT LCD Screen with 128(RGB)x128 Resolution and 450nits Brightness for Smart Home Appliances
  • 0.85 Inch IPS TFT LCD Screen with 128(RGB)x128 Resolution and 450nits Brightness for Smart Home Appliances
  • 0.85 Inch IPS TFT LCD Screen with 128(RGB)x128 Resolution and 450nits Brightness for Smart Home Appliances
  • 0.85 Inch IPS TFT LCD Screen with 128(RGB)x128 Resolution and 450nits Brightness for Smart Home Appliances
Tempat asal Cina
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model HX85001B
Kuantitas min Order 1000
Harga dapat dinegosiasikan
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 100k per bulan
Detail produk
Teknologi Tampilan Ips TFT LCD Screen nama tampilan warna tft
Ukuran 0,85" Resolusi 128(RGB)*128
Mengemudi IC ST7735S Sudut Pandang SEMUA jam 0'
Antarmuka SPI 4L Lampu latar 1LED
Kecerahan 450 Suhu Operasional -10 ~ 60 ℃
Menyoroti

0.85 Inch TFT Color Display

,

128(RGB)x128 Resolution IPS TFT LCD Screen

,

450nits Brightness TFT LCD Module
Tinggalkan pesan
Deskripsi Produk

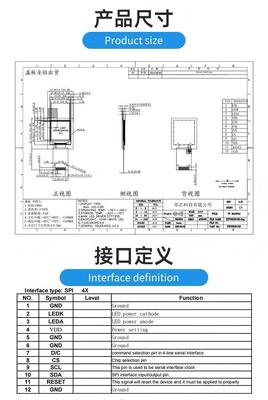

0.85 Inch IPS TFT Display with TP 128(RGB)x128 Resolution and 450nits SPI 4L interface ST7735S IC 1LED All View Smart home appliances Product Specifications Part NO. HX85001B Display Technology IPS TFT LCD Diagonal Screen Size 0.85 inch Active Area (mm) 15.21(H)X15.21(V) Panel size(mm) 21.30(H)X25.75(V)X2.49(T) Brightness(cd/m2) 450 Resolution 128(RGB)*128 Interface SPI 4L View angle ALL o'clock Driving IC ST7735S Product Picture Technical Drawing TFT Technology Overview
