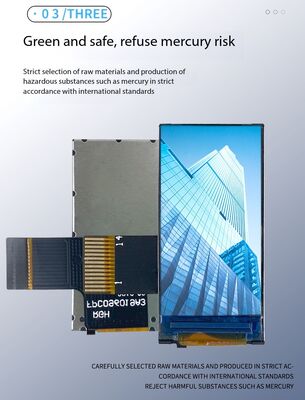

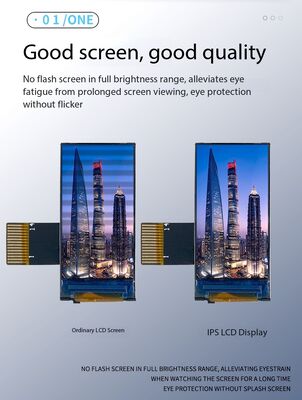

0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface

  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
  • 0.96 Inch IPS TFT Color Display with 80x160 Resolution and 550nits Brightness SPI 4W Interface
Tempat asal Cina
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model HX096019D
Kuantitas min Order 1000
Harga dapat dinegosiasikan
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 100k per bulan
Detail produk
Teknologi Tampilan Ips TFT LCD Screen nama tampilan warna tft
Ukuran 0,96" Resolusi 80*160
Mengemudi IC ST7735S Sudut Pandang SEMUA jam 0'

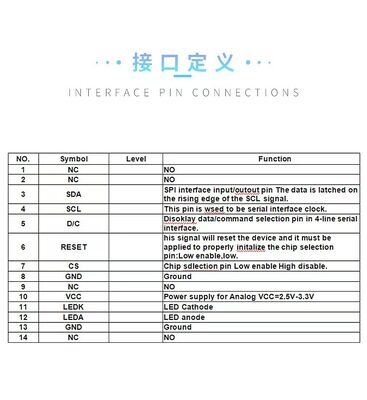

Antarmuka SPI 4W Lampu latar 1CHIP-LED PUTIH
Kecerahan 550 Suhu Operasional -20 ~ 70 ℃
Menyoroti

0.96 Inch TFT Color Display

,

80x160 Resolution IPS TFT LCD Screen

,

550nits Brightness TFT Display Module
Tinggalkan pesan
Deskripsi Produk

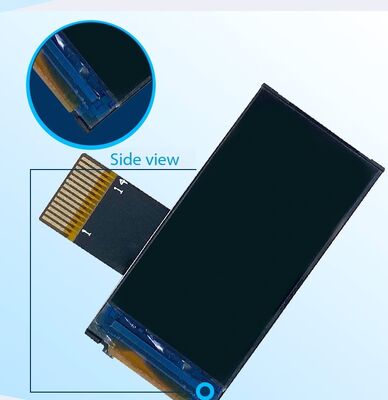

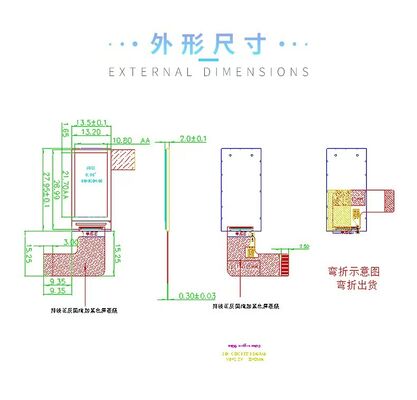

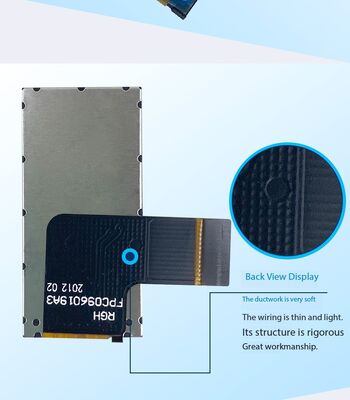

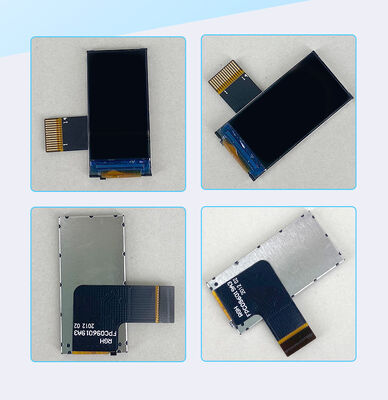

0.96 Inch IPS TFT Display with 80x160 Resolution and 550nits SPI 4W Interface ST7735S IC All View Pulse oximeter display Product Specifications Part NO. HX096019D Display Technology IPS TFT LCD Diagonal Screen Size 0.96 inch Active Area (mm) 10.80(H)X21.70(V) Panel size(mm) 13.50(H)X27.95(V)X2.0(T) Brightness(cd/m2) 550 Resolution 80*160 Interface SPI 4W View angle All o'clock Driving IC ST7735S Product Picture Technical Drawing TFT Technology Overview Manufacturer Informatio
