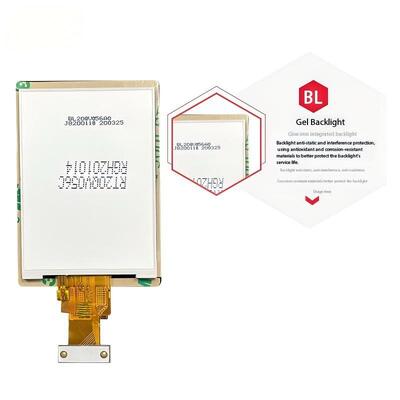

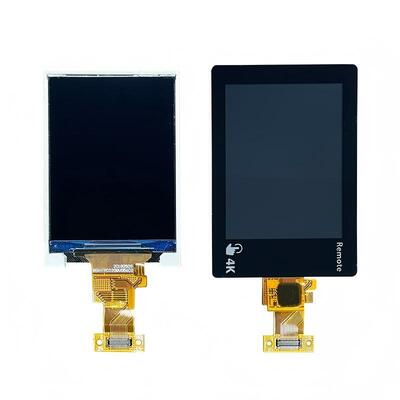

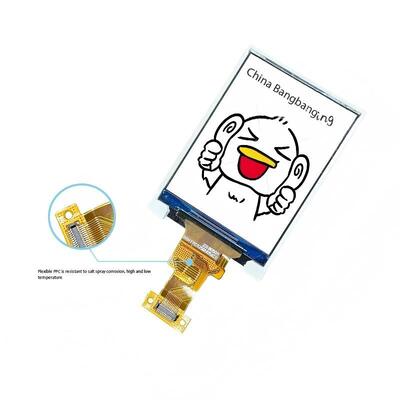

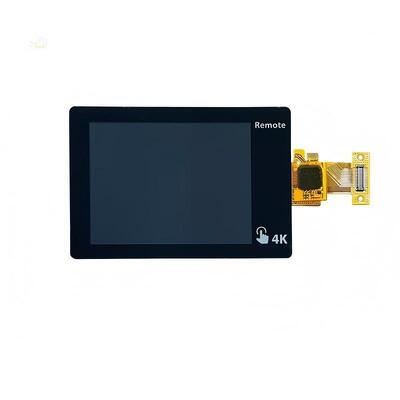

2.0 Inch IPS TFT Color Display with 240x320 Resolution ST7789V IC and MCU 6bit Interface, 480nits, 3 LED Backlight, All View Angle TFT Display Module

  • 2.0 Inch IPS TFT Color Display with 240x320 Resolution ST7789V IC and MCU 6bit Interface, 480nits, 3 LED Backlight, All View Angle TFT Display Module
  • 2.0 Inch IPS TFT Color Display with 240x320 Resolution ST7789V IC and MCU 6bit Interface, 480nits, 3 LED Backlight, All View Angle TFT Display Module
  • 2.0 Inch IPS TFT Color Display with 240x320 Resolution ST7789V IC and MCU 6bit Interface, 480nits, 3 LED Backlight, All View Angle TFT Display Module
  • 2.0 Inch IPS TFT Color Display with 240x320 Resolution ST7789V IC and MCU 6bit Interface, 480nits, 3 LED Backlight, All View Angle TFT Display Module
  • 2.0 Inch IPS TFT Color Display with 240x320 Resolution ST7789V IC and MCU 6bit Interface, 480nits, 3 LED Backlight, All View Angle TFT Display Module
  • 2.0 Inch IPS TFT Color Display with 240x320 Resolution ST7789V IC and MCU 6bit Interface, 480nits, 3 LED Backlight, All View Angle TFT Display Module
  • 2.0 Inch IPS TFT Color Display with 240x320 Resolution ST7789V IC and MCU 6bit Interface, 480nits, 3 LED Backlight, All View Angle TFT Display Module
  • 2.0 Inch IPS TFT Color Display with 240x320 Resolution ST7789V IC and MCU 6bit Interface, 480nits, 3 LED Backlight, All View Angle TFT Display Module
Tempat asal Cina
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model HX20QV056D
Kuantitas min Order 1000
Harga dapat dinegosiasikan
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 100k per bulan
Detail produk
Teknologi Tampilan Ips TFT LCD Screen Nama tampilan warna tft
Ukuran 2.0" Resolusi 240(RGB)*320
Mengemudi IC ST7789V Sudut Pandang SELURUH JAM

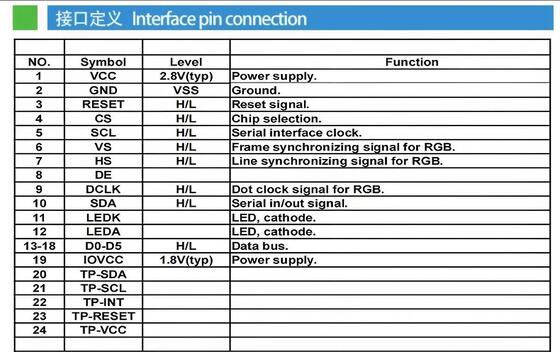

Antarmuka MCU 6bit Lampu latar 3 LED
Kecerahan 480 nit Suhu Operasional -20 ~ 70 ℃
Menyoroti

MCU 6bit Interface TFT Color Display

,

3 LED Backlight TFT Display Module

,

All View Angle IPS TFT LCD Screen
Tinggalkan pesan
Deskripsi Produk

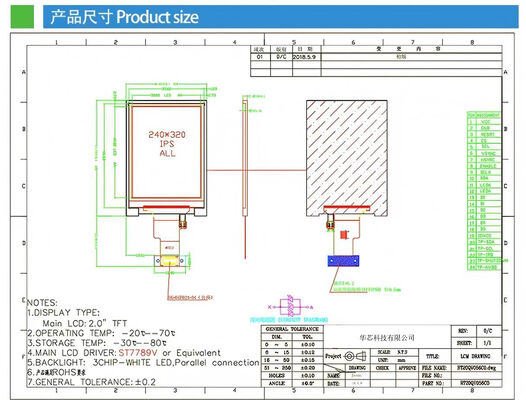

2.0 Inch IPS TFT Display with 240(RGB)x320 Resolution ST7789V IC 480nits MCU 6bit interface 3LEDS All View TFT Color Display Product Specifications Part NO. HX20QV056D Display Technology IPS TFT LCD Diagonal Screen Size 2.0 inch Active Area (mm) 30.60(W)X40.80(H) Panel size(mm) 36.05(W)X51.80(H)X2.0(T) Brightness(cd/m2) 480 nits Resolution 240(RGB)*320 Interface MCU 6bit View angle All o' clock Driving IC ST7789V Product Picture Technical Drawing TFT Technology Overview
