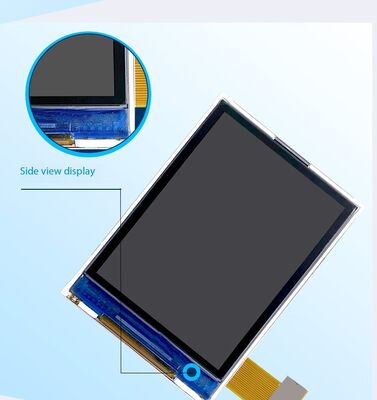

2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT

  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
  • 2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution and MCU 16bit Interface Sunlight Readable TFT
Tempat asal Cina
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model HX22QV007B
Kuantitas min Order 1000
Harga dapat dinegosiasikan
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 100k per bulan
Detail produk
Teknologi Tampilan Layar LCD TFT Transflektif Nama Layar warna TFT yang dapat dibaca matahari
Ukuran 2.2" Resolusi 240(RGB)*320
Mengemudi IC ST7789V Sudut Pandang JAM 6
Antarmuka MCU 16bit Lampu latar 4 LED
Kecerahan 160 nit Suhu Operasional -20 ~ 70 ℃
Menyoroti

2.2 Inch Transflective TFT Display

,

240(RGB)x320 Resolution Sunlight Readable TFT

,

MCU 16bit Interface Transflective TFT LCD
Tinggalkan pesan
Deskripsi Produk

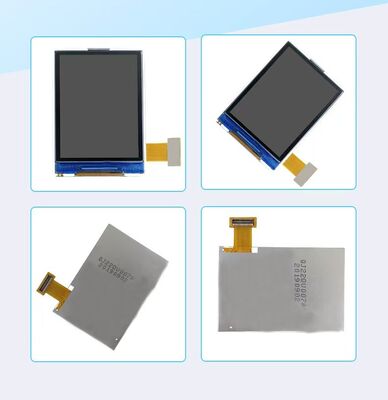

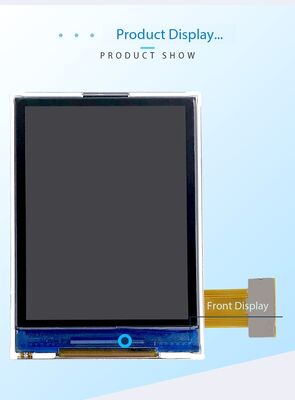

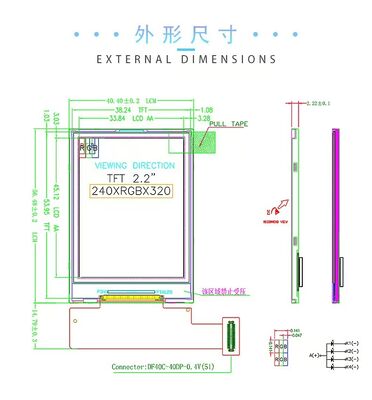

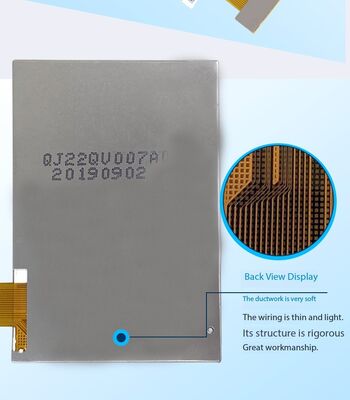

2.2 Inch Transflective TFT Display with 240(RGB)x320 Resolution ST7789V IC 160nits MCU 16bit interface 4LEDS TFT Color Display Product Specifications Part NO. HX22QV007B Display Technology Transflective TFT LCD Diagonal Screen Size 2.2 inch Active Area (mm) 33.84(W)X45.12(H) Panel size(mm) 40.40(W)X56.48(H)X2.22(T) Brightness(cd/m2) 160 nits Resolution 240(RGB)*320 Interface MCU 16bit View angle 6 o' clock Driving IC ST7789V Product Picture Technical Drawing TFT Technology
