2.4 Inch Transflective TFT Color Display with 240x240 Resolution,ST7789V2 IC MCU 16BIT Interface, 160nits Brightness and 2 LEDS TFT LCD Screen

  • 2.4 Inch Transflective TFT Color Display with 240x240 Resolution,ST7789V2 IC MCU 16BIT Interface, 160nits Brightness and 2 LEDS TFT LCD Screen
  • 2.4 Inch Transflective TFT Color Display with 240x240 Resolution,ST7789V2 IC MCU 16BIT Interface, 160nits Brightness and 2 LEDS TFT LCD Screen
  • 2.4 Inch Transflective TFT Color Display with 240x240 Resolution,ST7789V2 IC MCU 16BIT Interface, 160nits Brightness and 2 LEDS TFT LCD Screen
  • 2.4 Inch Transflective TFT Color Display with 240x240 Resolution,ST7789V2 IC MCU 16BIT Interface, 160nits Brightness and 2 LEDS TFT LCD Screen
  • 2.4 Inch Transflective TFT Color Display with 240x240 Resolution,ST7789V2 IC MCU 16BIT Interface, 160nits Brightness and 2 LEDS TFT LCD Screen
  • 2.4 Inch Transflective TFT Color Display with 240x240 Resolution,ST7789V2 IC MCU 16BIT Interface, 160nits Brightness and 2 LEDS TFT LCD Screen
  • 2.4 Inch Transflective TFT Color Display with 240x240 Resolution,ST7789V2 IC MCU 16BIT Interface, 160nits Brightness and 2 LEDS TFT LCD Screen
  • 2.4 Inch Transflective TFT Color Display with 240x240 Resolution,ST7789V2 IC MCU 16BIT Interface, 160nits Brightness and 2 LEDS TFT LCD Screen
Tempat asal Cina
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model HX24QV129A
Kuantitas min Order 1000
Harga dapat dinegosiasikan
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 100k per bulan
Detail produk
Teknologi Tampilan Layar LCD TFT Transflektif Nama Tampilan warna TFT transflektif
Ukuran 2.4" Resolusi 240(RGB)*240
Mengemudi IC ST7789V2 Sudut Pandang jam 2
Antarmuka MCU 16bit Lampu latar 2 LED
Kecerahan 160 nit Suhu Operasional -20 ~ 70 ℃
Tinggalkan pesan
Deskripsi Produk

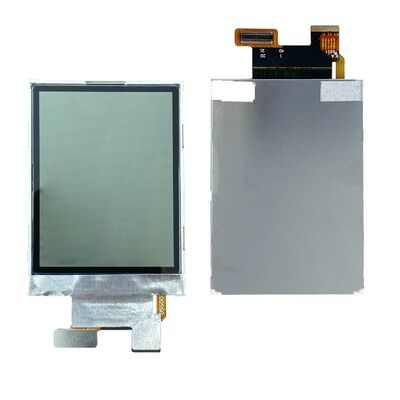

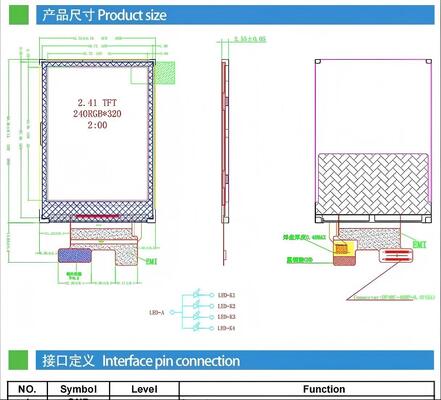

2.4 Inch Transflective TFT Color Display with 240x240 Resolution,ST7789V2 IC MCU 16BIT Interface, 160nits Brightness and 2 LEDS TFT LCD Screen Product Specifications Part NO. HX24QV129A Display Technology Transflective TFT LCD Diagonal Screen Size 2.4 inch Active Area (mm) 36.72(W)X48.96(H) Panel size(mm) 42.72(W)X60.16(H)X2.55(T) Brightness(cd/m2) 160 nits Resolution 240(RGB)*240 Interface MCU 16bit View angle 2 o' clock Driving IC ST7789V2 Product Picture Technical Drawing
