3.5 Inch IPS TFT Color Display with MCU 16bit Interface and All O' Clock View Angle Using ILI9488 IC for Industrial Applications

  • 3.5 Inch IPS TFT Color Display with MCU 16bit Interface and All O' Clock View Angle Using ILI9488 IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display with MCU 16bit Interface and All O' Clock View Angle Using ILI9488 IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display with MCU 16bit Interface and All O' Clock View Angle Using ILI9488 IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display with MCU 16bit Interface and All O' Clock View Angle Using ILI9488 IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display with MCU 16bit Interface and All O' Clock View Angle Using ILI9488 IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display with MCU 16bit Interface and All O' Clock View Angle Using ILI9488 IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display with MCU 16bit Interface and All O' Clock View Angle Using ILI9488 IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display with MCU 16bit Interface and All O' Clock View Angle Using ILI9488 IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display with MCU 16bit Interface and All O' Clock View Angle Using ILI9488 IC for Industrial Applications
Tempat asal Tiongkok
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model HX35HV039D
Kuantitas min Order 1000
Harga dapat dinegosiasikan
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 100k per bulan
Detail produk
Teknologi Tampilan Ips TFT LCD Screen Nama tampilan warna tft
Ukuran 3,5" Resolusi 320(RGB)*480
Mengemudi IC ILI9488 Sudut Pandang SELURUH JAM
Antarmuka MCU 16bit Lampu latar 6 LED
Kecerahan 500 nits Suhu Operasional -20 ~ 70 ℃
Rasio Kontras 1000
Menyoroti

MCU 16bit Interface TFT Color Display

,

All O' Clock View Angle IPS TFT LCD Screen

,

ILI9488 IC TFT LCD Display Module
Tinggalkan pesan
Deskripsi Produk

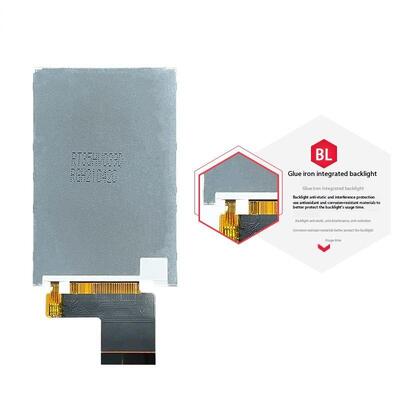

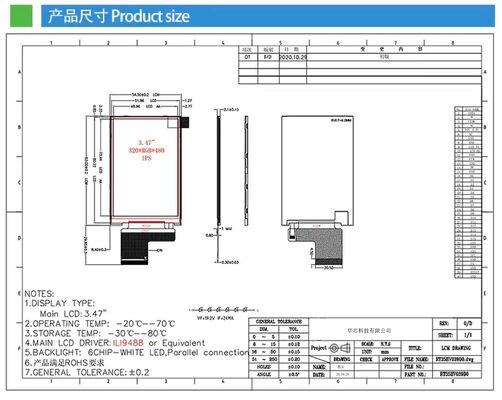

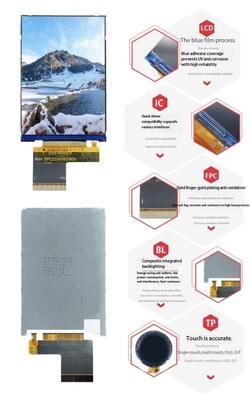

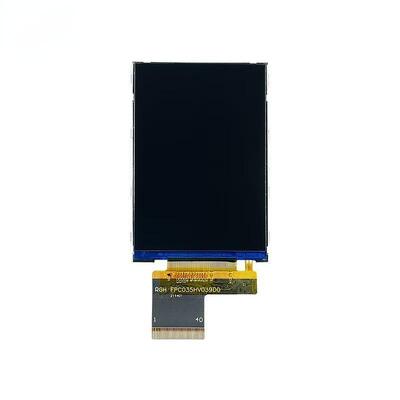

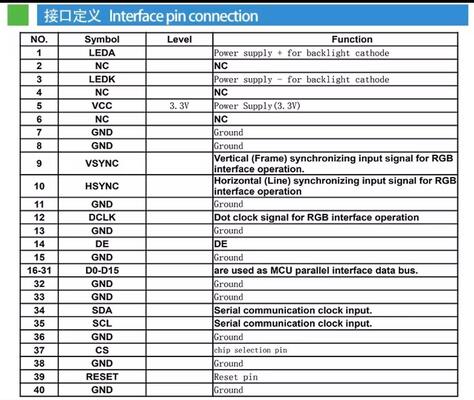

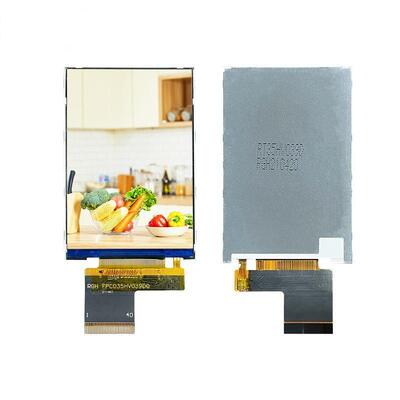

3.5 Inch IPS TFT Color Display 320(RGB)x480 Resolution MCU 16bit Interface ILI9488 IC 500nits 6LEDS for Industrial Applications Product Specifications Part NO. HX35HV039D Display Technology IPS TFT LCD Diagonal Screen Size 3.5 inch Active Area (mm) 48.96(H)X73.44(V) Panel size(mm) 54.50(H)X83.00(V)X2.1(T) Brightness(cd/m2) 500 nits Resolution 320(RGB)*480 Interface MCU 16bit View angle All o' clock Driving IC ILI9488 Product Picture Technical Drawing TFT Technology Overview
