3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances

  • 3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances
  • 3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances
  • 3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances
  • 3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances
  • 3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances
  • 3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances
  • 3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances
  • 3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances
  • 3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances
Tempat asal Cina
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model HX34WV003A
Kuantitas min Order 1000
Harga dapat dinegosiasikan
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 100k per bulan
Detail produk
Teknologi Tampilan Ips TFT LCD Screen nama tampilan warna tft
Ukuran 3,4" Resolusi 480 (RGB)*480
Mengemudi IC ST7701SN-G5-1 Sudut Pandang SEMUA jam 0'
Antarmuka MIPI Lampu latar 8LEDS
Kecerahan 550 Suhu Operasional -20 ~ 70 ℃
Tinggalkan pesan
Deskripsi Produk

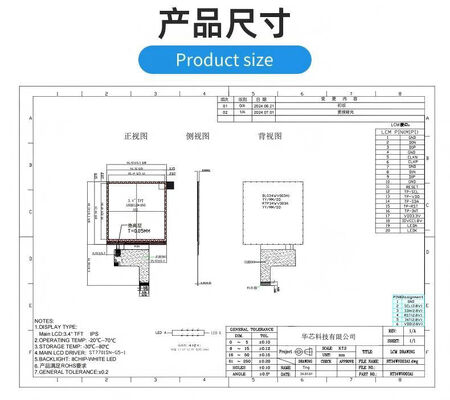

3.4 Inch High Brightness IPS TFT Display with 480(RGB)x480 Resolution and 550nits MIPI interface ST7701SN-G5-1 IC 8LEDS All View Smart home appliances Product Specifications Part NO. HX34WV003A Display Technology IPS TFT LCD Diagonal Screen Size 3.4 inch Active Area (mm) 60.48(H)X60.48(V) Panel size(mm) 64.62(H)X68.19(V)X2.1(T) Brightness(cd/m2) 550 Resolution 480(RGB)*480 Interface MIPI View angle ALL o'clock Driving IC ST7701SN-G5-1 Product Picture Technical Drawing TFT
