3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ST7703 Driving IC for Industrial Applications

  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ST7703 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ST7703 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ST7703 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ST7703 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ST7703 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ST7703 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ST7703 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ST7703 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ST7703 Driving IC for Industrial Applications
Tempat asal Tiongkok
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model HX35HD001A
Kuantitas min Order 1000
Harga dapat dinegosiasikan
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 100k per bulan
Detail produk
Teknologi Tampilan Ips TFT LCD Screen Nama tampilan warna tft
Ukuran 3,5" Resolusi 640(RGB)*480
Mengemudi IC ST7703 Sudut Pandang SELURUH JAM
Antarmuka MIPI 2T Lampu latar 6LED
Kecerahan 350 nit Suhu Operasional -20 ~ 70 ℃
Rasio Kontras 1000
Menyoroti

MIPI 2T Interface TFT Color Display

,

All View Angle TFT LCD Display Module

,

ST7703 Driving IC IPS TFT Display
Tinggalkan pesan
Deskripsi Produk

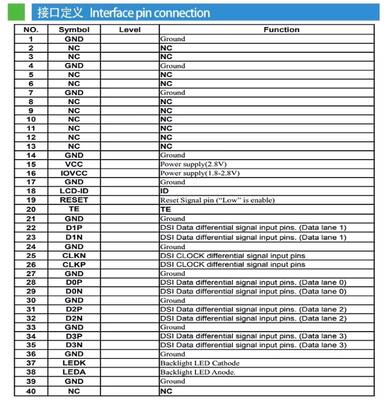

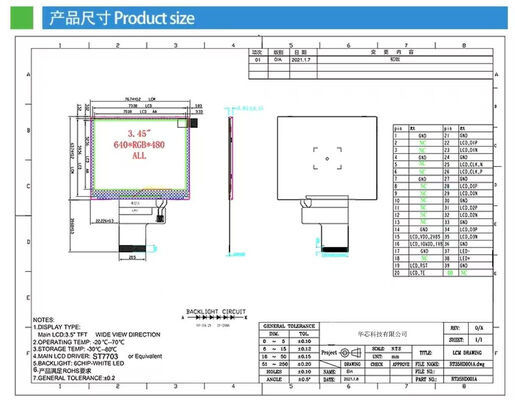

3.5 Inch IPS TFT Color Display Module 640(RGB)x480 Resolution MIPI 2T Interface ST7703 All View 350nits 6LEDS Product Specifications Part NO. HX35HD001A Display Technology IPS TFT LCD Diagonal Screen Size 3.5 inch Active Area (mm) 70.08(H)X52.56(V) Panel size(mm) 76.74(H)X63.74(V)X3.04(T) Brightness(cd/m2) 350 nits Resolution 640(RGB)*480 Interface MIPI 2T View angle All o' clock Driving IC ST7703 Product Picture Technical Drawing TFT Technology Overview Manufacturer
