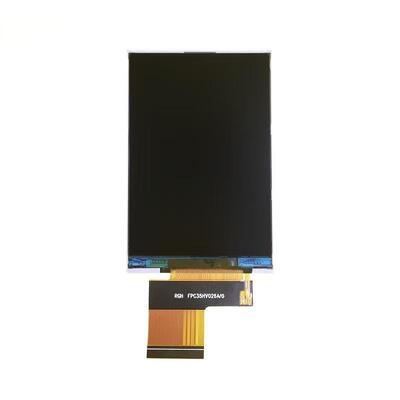

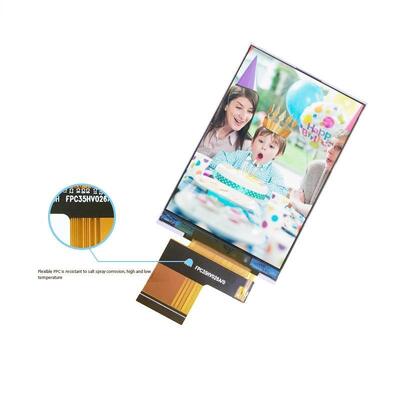

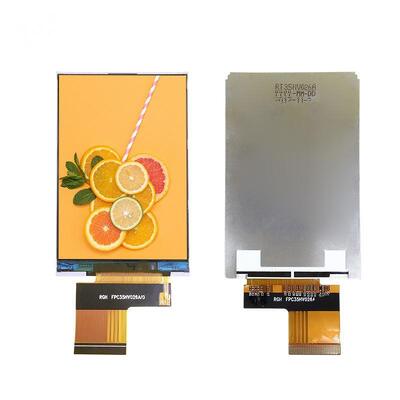

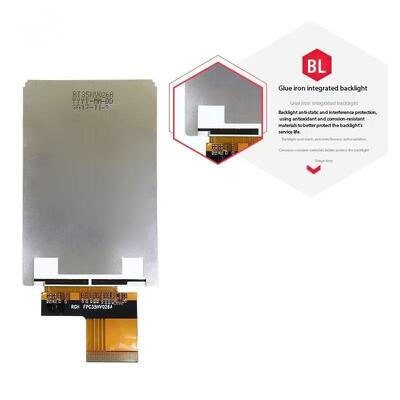

3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ILI9488 Driving IC for Industrial Applications

  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ILI9488 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ILI9488 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ILI9488 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ILI9488 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ILI9488 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ILI9488 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ILI9488 Driving IC for Industrial Applications
  • 3.5 Inch IPS TFT Color Display Module with MIPI 2T Interface, All View Angle and ILI9488 Driving IC for Industrial Applications
Tempat asal Tiongkok
Nama merek HuaXin
Sertifikasi ISO14001/ISO9001/IATF16949
Nomor model HX35HV026B
Kuantitas min Order 1000
Harga dapat dinegosiasikan
Kemasan rincian Kotak blister+busa+tas gelembung+di dalam karton+karton master
Waktu pengiriman 6 minggu ~ 8 minggu
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 100k per bulan
Detail produk
Teknologi Tampilan Ips TFT LCD Screen Nama tampilan warna tft
Ukuran 3,5" Resolusi 320(RGB)*480
Mengemudi IC ILI9488 Sudut Pandang SELURUH JAM
Antarmuka MIPI 2T Lampu latar 6 LED
Kecerahan 280 NIT Suhu Operasional -20 ~ 70 ℃
Menyoroti

MIPI 2T Interface TFT Color Display

,

All View Angle TFT LCD Display Module

,

ILI9488 Driving IC IPS TFT Display
Tinggalkan pesan
Deskripsi Produk

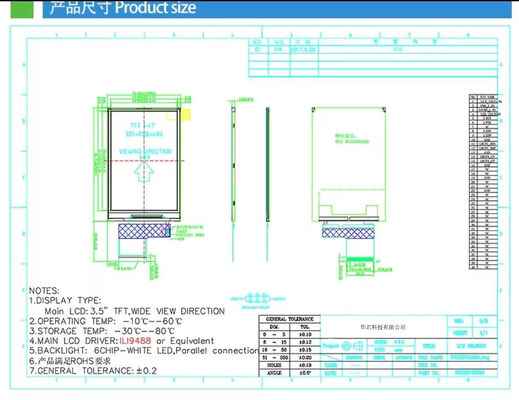

3.5 Inch IPS TFT Color Display Module 320(RGB)x480 Resolution MIPI 2T Interface ILI9488 All View 280nits 6LEDS Product Specifications Part NO. HX35HV026B Display Technology IPS TFT LCD Diagonal Screen Size 3.5 inch Active Area (mm) 48.96(H)X73.44(V) Panel size(mm) 54.48(H)X84.71(V)X2.3(T) Brightness(cd/m2) 280 nits Resolution 320(RGB)*480 Interface MIPI 2T View angle All o' clock Driving IC ILI9488 Product Picture Technical Drawing TFT Technology Overview Manufacturer
